Supported Types

Fig supports most c# property types out of the box with customized editors for each type. More complex types are supported using data grids or JSON.

Some of the settings such as strings and ints also support other capabilities such as valid value dropdown or validation.

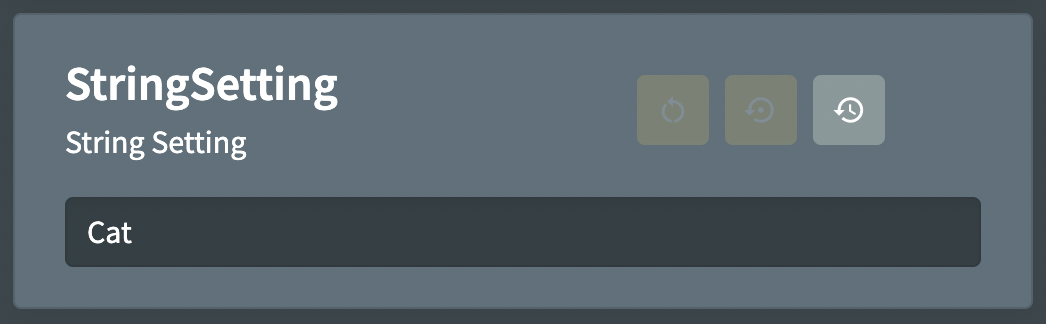

String​

Text based settings.

Note: If nullable settings are enabled, strings must either be nullable or have a default value.

string-setting

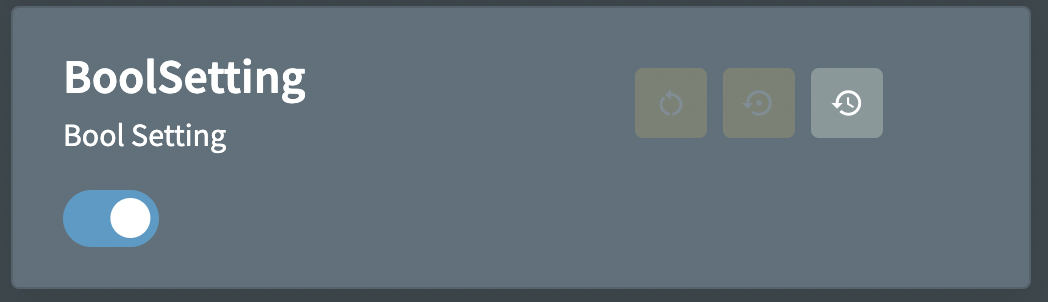

Bool​

True or false values.

bool-setting

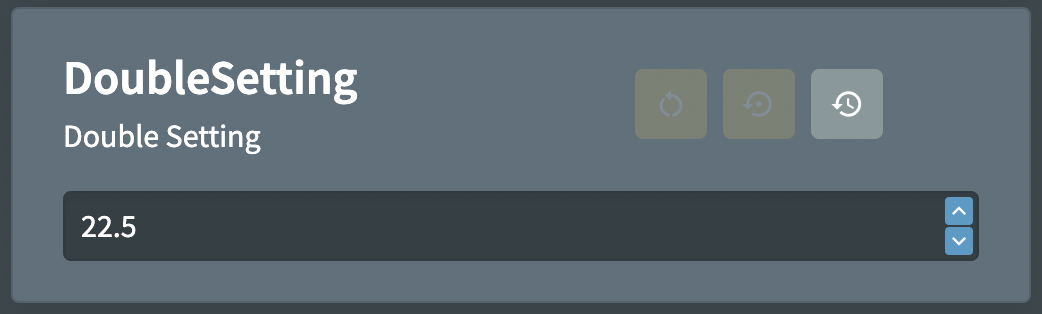

Double​

Decimal numbers. Nullable values are also supported.

double-setting

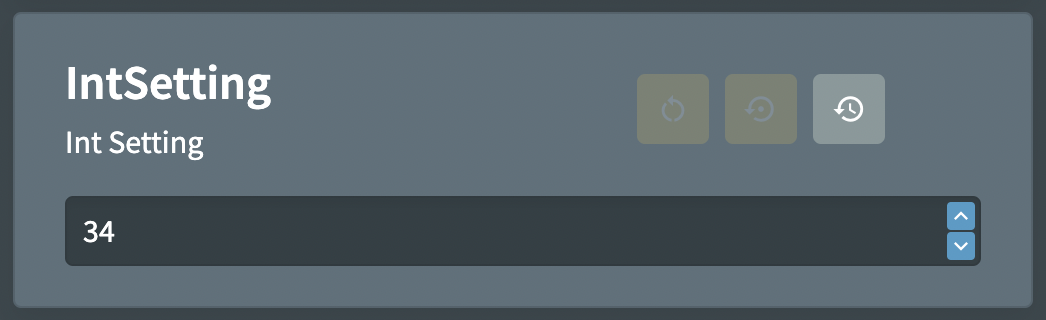

Int​

Whole numbers. Nullable values are also supported.

image-20220726225609084

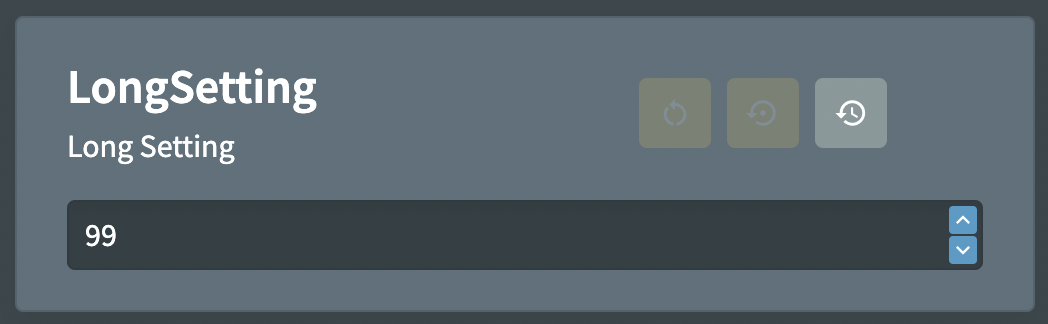

Long​

Larger whole numbers. Nullable values are also supported.

image-20220726225708951

DateTime​

Date and Time

2022-07-26 23.32.36

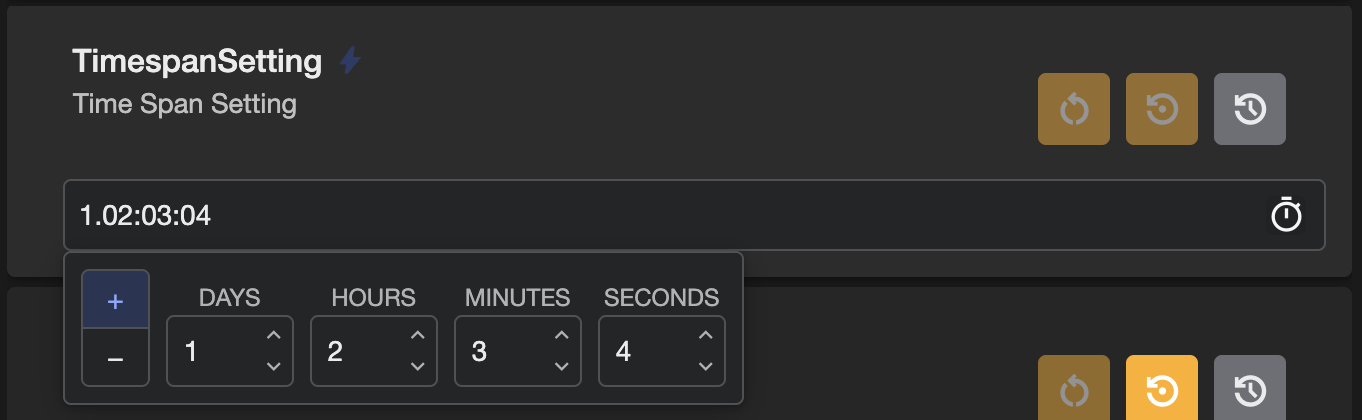

TimeSpan​

A time range.

Note: This is represented as a string within the web interface.

image-20220726230046584

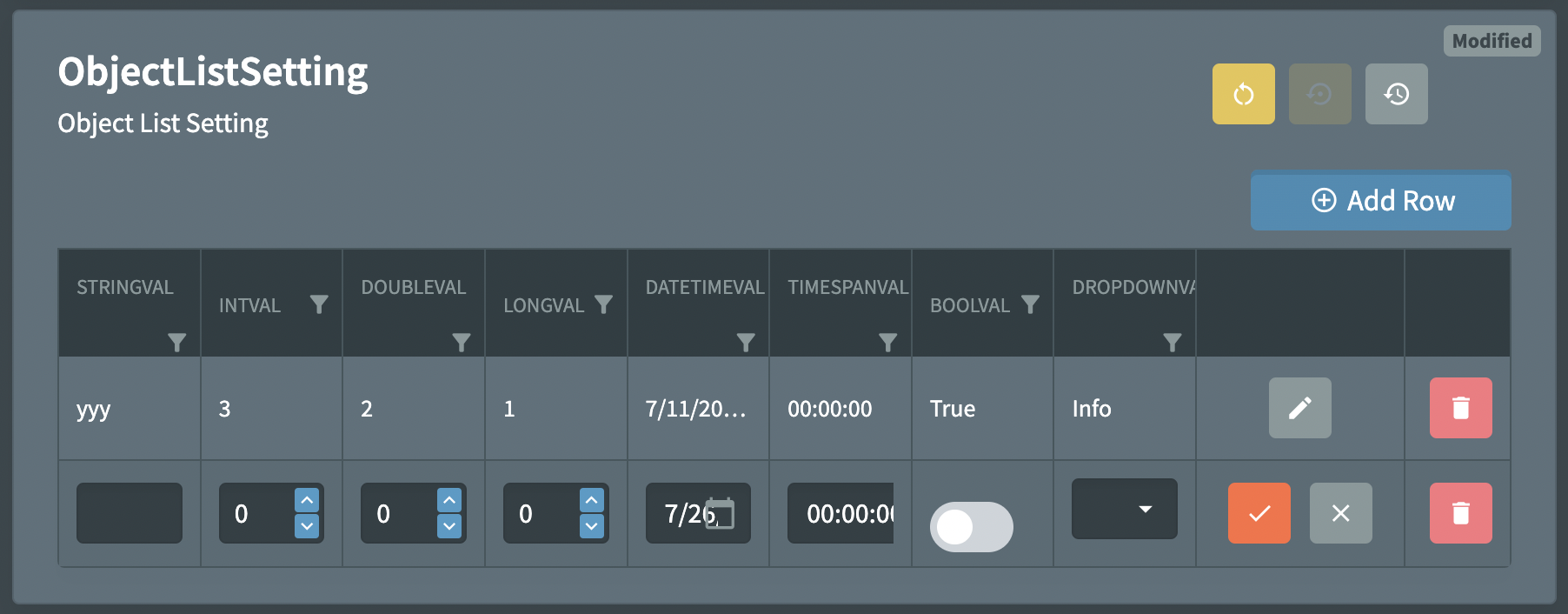

Data Grid​

Data grids can be used to group multiple values in a collection. For example a data grid can be used for list of strings or integers or it could be a collection of objects where the class definition for the object contains multiple properties of different types.

image-20220726230140744

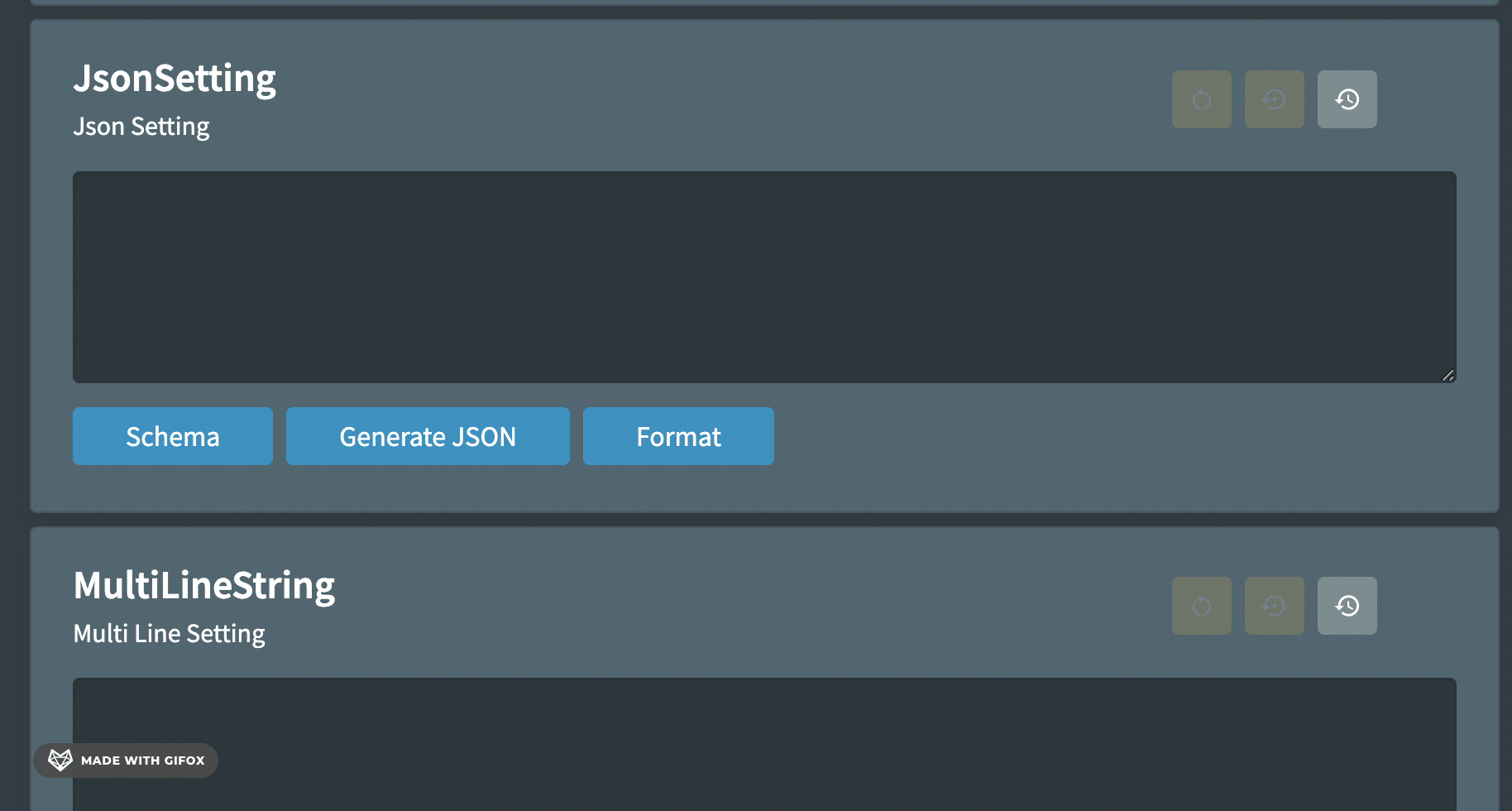

JSON​

JSON representation of a class. This is the fallback mode for Fig if it cannot find another match for this property type.

2022-07-26 23.02.28

The following types are NOT supported​

SecureString - Not recommended for use by Microsoft in dotnet core. See here.

List<KeyValuePair<T1,T2>> - List of base types (e.g. List<string>) are supported but not complex types.

Other complex types - A basic object can probably work as a JSON string but as it needs to be parsed correctly into the setting provider format, it is not guaranteed to work correctly. You'll need to test the setting implementation to see.

Arrays - Lists are supported but arrays are not (e.g. use List<string> instead of string[])
